1. Introduction



When it comes to selecting the appropriate conduit for an electrical project, making the right choice is crucial to ensure safety, longevity, and compliance with local regulations. Among the many materials available for electrical conduits, LSZH (Low Smoke Zero Halogen) and PVC (Polyvinyl Chloride) are two popular options, each offering unique benefits tailored to specific needs.

Both LSZH and PVC conduits are designed to protect electrical cables from external factors, ensuring smooth operation and reducing the risk of damage. However, they are made from different materials, which means they come with distinct characteristics, performance capabilities, and ideal use cases.

In this post, we will explore and compare LSZH conduits with PVC conduits, highlighting their key differences, advantages, and disadvantages. This comparison will help guide electrical engineers, project managers, and construction professionals in choosing the best conduit material for their specific application.

2. What is LSZH Conduit?

LSZH Conduit

LSZH conduits are electrical conduits made from materials that emit low smoke and do not release halogen gases when exposed to high heat or fire. They are specifically engineered to minimize the environmental and health risks associated with fires, making them crucial for use in sensitive or high-risk environments.



2.1 The History and Evolution of Low Smoke Zero Halogen (LSZH)



The development of LSZH materials was driven by the growing awareness of the dangers associated with halogenated materials, particularly in the event of fires.

2.1.1 The Rise of Halogen-Free Materials

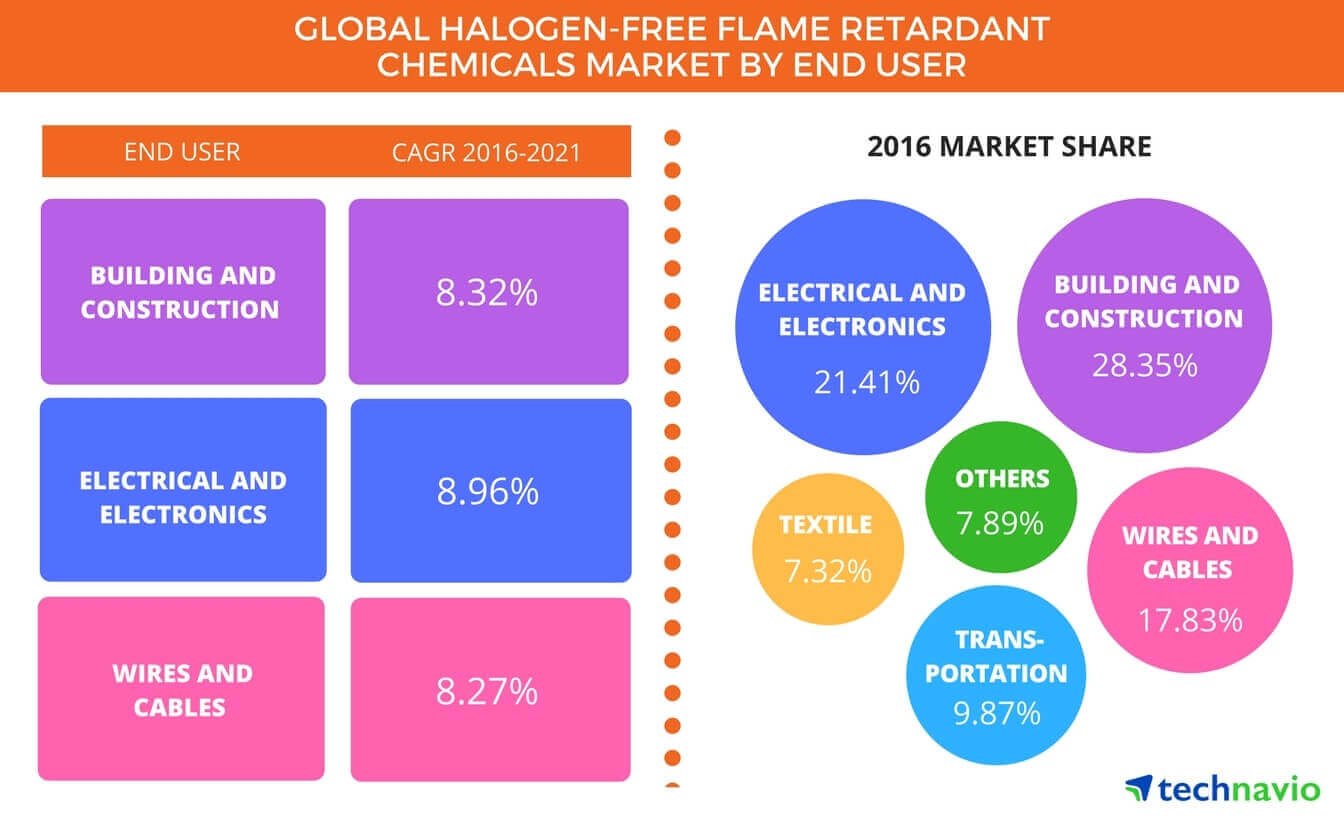

Global_Halogen_Free_Flame_Retardant_Chemicals_Market

Historically, materials like PVC (Polyvinyl Chloride) were widely used in electrical wiring and conduits due to their low cost, strength, and ease of manufacturing. However, one significant drawback of PVC and similar materials was their halogen content, particularly chlorine, which is one of the most common halogens found in plastics. When PVC burns, the chlorine in the material reacts with heat to form hydrogen chloride (HCl) and dioxins, both of which are highly toxic and dangerous to human health and the environment.

The 1970s and 1980s saw increasing regulations around fire safety and environmental concerns, especially in confined spaces like subways, airports, and tunnels, where the risk of smoke inhalation was high. This led to the development of halogen-free materials as a safer alternative for fire-prone areas. LSZH materials emerged as a result, meeting the growing demand for fire safety, environmental sustainability, and human health protection.

The adoption of LSZH materials gained significant momentum in the 1990s and 2000s when major fire safety standards and regulations were updated to include stricter guidelines on low-smoke and non-toxic materials. For example, the European Union introduced RoHS (Restriction of Hazardous Substances) and CE marking requirements, mandating that electrical systems be free from hazardous substances, including halogens, which led to a more widespread adoption of LSZH in various industries.

Today, LSZH conduits are recognized globally for their safety and environmental benefits, and they are a standard choice in industries requiring high levels of fire safety, such as transportation, healthcare, data centers, and commercial buildings.

low smoke halogen free

2.2 Other Names for LSZH Conduits



While LSZH is the most common term used to describe these types of conduits, the same product is sometimes referred to by different names, depending on regional preferences, regulatory frameworks, or the specific market sector. Here are some of the other common names for LSZH conduits:

Low Smoke Halogen-Free (LSHF): This term is often used interchangeably with LSZH and refers to the same characteristics—low smoke emissions and the absence of halogens. It highlights the conduit’s lack of halogen elements, such as chlorine or bromine, which can produce toxic gases when burned.

Zero Halogen (ZH): This is another name used for LSZH materials, emphasizing the absence of halogens in the material’s composition.

Non-Halogenated Conduits: This term also refers to the same concept, meaning that the conduit material does not contain any halogen compounds. It’s a more general term used in safety and compliance contexts to describe materials that do not release toxic halogenated gases.

Fire-Resistant Conduits: Although fire resistance is a key characteristic of LSZH conduits, this name can be misleading as many materials can be marketed as fire-resistant. However, LSZH’s superior fire safety (low smoke and non-toxic gas emissions) makes it stand out in this category. In some regions or industries, LSZH conduits might be marketed as “fire-resistant” or “flame-retardant” products to highlight this benefit.

Halogen-Free (HF): This term is used to denote products that are entirely free of halogens. It’s another way of referring to LSZH materials, particularly in regulatory compliance contexts, such as the European Union’s RoHS directive, which mandates the use of non-halogenated materials in certain applications.



2.3 Why Are These Different Names Important?



The different names, such as Low Smoke Halogen-Free (LSHF) and Zero Halogen (ZH), often refer to the same general product—materials that provide safety benefits during a fire, such as reduced smoke production and the absence of harmful gases. However, these names can vary by region, industry, or even regulatory body. Understanding these different terms helps manufacturers, engineers, and project managers ensure they are specifying the correct material for the intended application, especially when dealing with international standards or cross-border projects.

For example, a project in the European Union might refer to halogen-free materials with names like LSHF or RoHS-compliant. On the other hand, projects in the United States or Asia might use LSZH or Zero Halogen (ZH), depending on the region’s regulatory requirements.



2.4 Understanding Halogens and Why They’re Dangerous



Halogens are a group of elements found in the periodic table that includes fluorine, chlorine, bromine, iodine, and astatine. These elements are highly reactive and are commonly found in a variety of synthetic polymers, such as PVC (Polyvinyl Chloride). Halogens, particularly chlorine, are used in plastic formulations to enhance material properties such as strength, flexibility, and weather resistance. However, they present significant hazards during a fire:

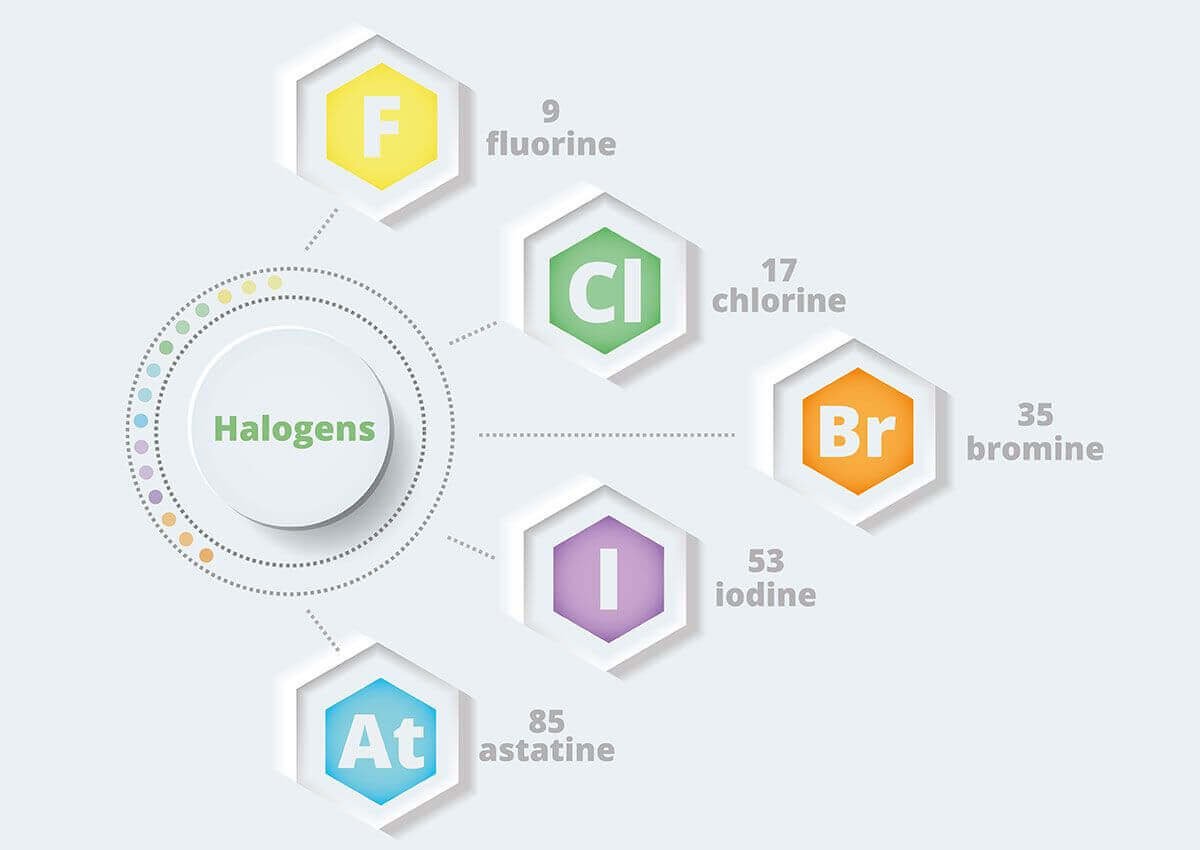

halogen

  • Toxic Gases: When halogenated materials burn, they release toxic gases like hydrogen chloride (HCl), phosgene, and dioxins. These compounds can severely damage the respiratory system, impair vision, and cause long-term environmental harm.
  • Corrosive Smoke: Chlorine, when heated, forms hydrogen chloride gas, which is corrosive to electrical systems, metals, and other infrastructure. This can lead to further damage even after a fire has been put out.

This is where LSZH (Low Smoke Zero Halogen) conduits shine. LSZH conduits are made from materials that do not contain halogens like chlorine, bromine, or fluorine. Instead, they are typically made from polyethylene (PE), polypropylene (PP), or other materials that are free from these dangerous elements. In the event of a fire, LSZH conduits emit far less smoke and no toxic halogen gases, making them significantly safer in confined environments.



2.5 How LSZH Works



LSZH materials are carefully formulated to contain specific additives and chemicals that reduce the formation of toxic gases and smoke during combustion. These additives include:

White-Halogen-Free-Flame-Retardant

  • Fire Retardants: These chemicals are designed to slow down the combustion process, preventing the material from catching fire easily and reducing the spread of flames. Fire retardants may work by forming a protective char layer that insulates the material from heat.
  • Smoke Suppressants: These are additives that reduce the amount of smoke produced when the material burns. They achieve this by promoting the formation of fewer volatile gases and preventing the creation of thick, black smoke that could impair visibility in the event of a fire.
  • Non-Halogenated Polymers: LSZH materials use alternative polymers that do not contain chlorine, bromine, or fluorine. These non-halogenated polymers prevent the release of halogenated gases when exposed to heat.

The combination of these features makes LSZH conduits a safer choice for high-risk environments, ensuring better protection for both the building infrastructure and the people inside it.

Low smoke Zero halogen

2.6 Applications in Industries



As fire safety becomes a more prominent consideration across industries, LSZH conduits have found their place in a variety of critical applications. These include:

Transportation: The use of LSZH conduits in subway systems, railways, airports, and tunnels is common, as these areas are often enclosed and packed with people. The risk of smoke inhalation and fire is high, so LSZH conduits ensure that safety is maximized in emergency situations.

Healthcare: Hospitals and medical centers use LSZH conduits to protect vital electrical systems in areas like ICUs, operating rooms, and laboratories. These facilities must maintain high levels of safety due to the sensitive nature of their equipment and the patients they serve.

Data Centers: The increasing need for high-performance computing and data storage systems has led to the rise of data centers, where LSZH conduits are used to protect sensitive wiring. Since these centers are often densely packed with expensive, high-value equipment, minimizing the risk of fire and smoke damage is critical.

Public Buildings and High-Rise Developments: Whether it’s a commercial office building, hotel, or public venue, LSZH conduits offer a vital layer of safety by minimizing the risk of toxic emissions and fire damage, ensuring the protection of both the building and its occupants.



3. What is PVC Conduit?

PVC conduit as nzs 2053

PVC conduit refers to Polyvinyl Chloride conduit, a popular and cost-effective type of electrical conduit widely used to protect and route electrical wiring. Known for its durability, flexibility, and corrosion resistance, PVC conduit is one of the most common materials used in both residential and commercial electrical installations. It provides protection against physical damage, moisture, and various chemicals, making it an ideal choice for a wide range of applications.



3.1 History of PVC Conduit



The history of PVC (Polyvinyl Chloride) conduit traces back to the broader history of PVC plastic itself, which has evolved from a laboratory discovery to a material that revolutionized many industries, including electrical wiring. Here is an overview of its history, key developments, and impact on electrical conduit applications.

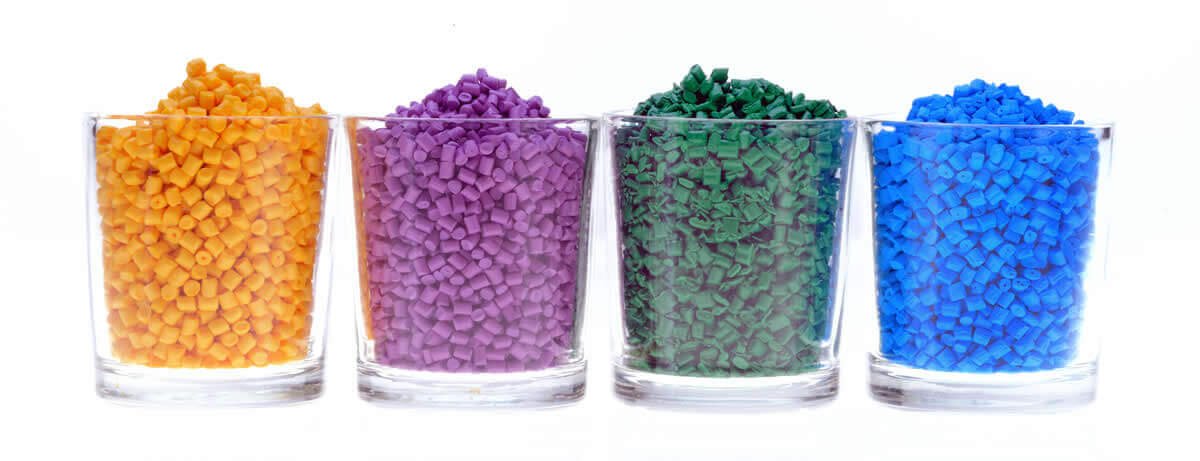

pvc conduit material

3.1.1 The Origins of PVC Plastic



The story of PVC begins in the early 19th century, when the first synthetic polymers were discovered:

1835: The first known form of PVC was accidentally created by French chemist Henri Victor Regnault when he heated vinyl chloride gas in the presence of sunlight. However, this early form of PVC was not practical for use until more modern manufacturing techniques were developed.

1912: PVC as a practical material was re-discovered by Friedrich Heinrich August Klatte, a German chemist. He is credited with polymerizing vinyl chloride to create solid PVC. However, it wasn’t until the 1920s and 1930s that PVC began to be produced in a commercial setting.

conduit development trend

3.1.2 Commercial Production and Early Applications



PVC became a commercially viable material after World War II, when the demand for versatile, durable, and low-cost materials surged. Its applications expanded rapidly across industries due to its low cost, chemical resistance, and versatility. It could be easily manufactured and adapted to a variety of products, including pipes, flooring, electrical insulation, and construction materials.

1940s – 1950s: PVC started being used for plumbing pipes and electrical insulation. The rise of electrical infrastructure, especially in the post-WWII boom, significantly increased the demand for materials to safely house electrical wiring.

1950s: Manufacturers began producing PVC conduit for electrical wiring as a safer alternative to metal conduit, which was prone to rust, corrosion, and higher costs. The material’s flexibility, lightweight nature, and non-conductive properties made it an excellent choice for protecting electrical wiring in buildings, leading to widespread adoption.



3.1.3 Development of Rigid PVC Conduit



As PVC’s advantages became clear, the need for more durable and safer materials in the electrical industry grew. Rigid PVC conduit was developed to offer an economical and effective solution for routing electrical wires, and by the 1960s, it became standard in residential, commercial, and industrial wiring systems.

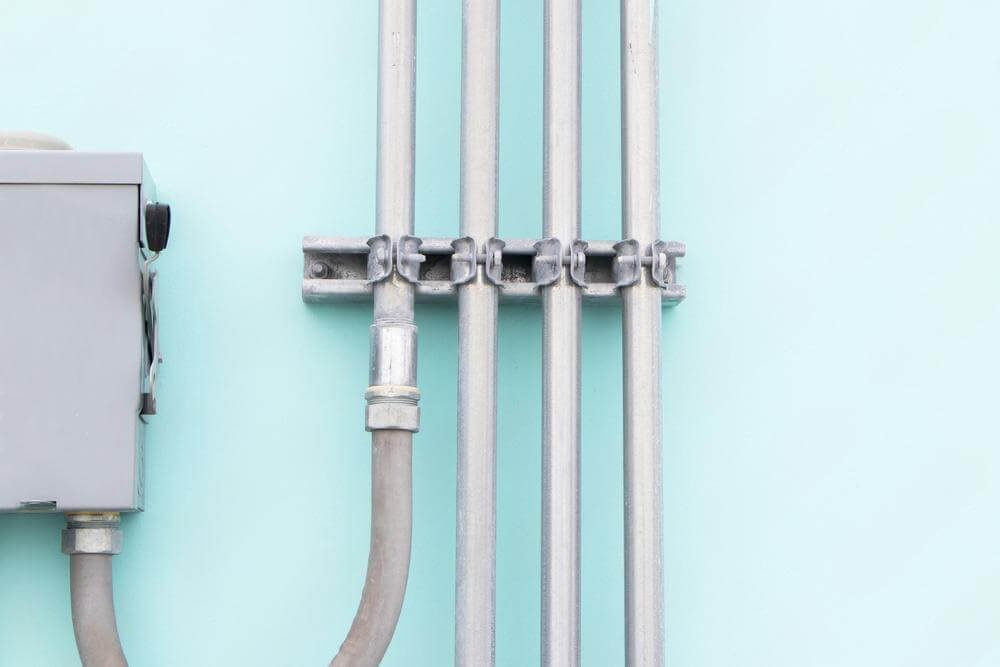

metal conduit

PVC conduit replaced metal conduits (e.g., steel) in many applications, offering a non-conductive, more lightweight, and cost-effective alternative that did not corrode, rust, or require special grounding.

By the 1970s, rigid PVC conduit was widely adopted for electrical installations in both new and retrofitted buildings across the United States and Europe. It also gained a foothold in other parts of the world, especially in regions where metal conduit was costly or unavailable.



3.1.4 Evolution of Standards and Regulations



As the popularity of PVC conduit grew, so did the need for industry standards to ensure its quality, safety, and performance. Various national and international organizations set up standards for PVC conduit:

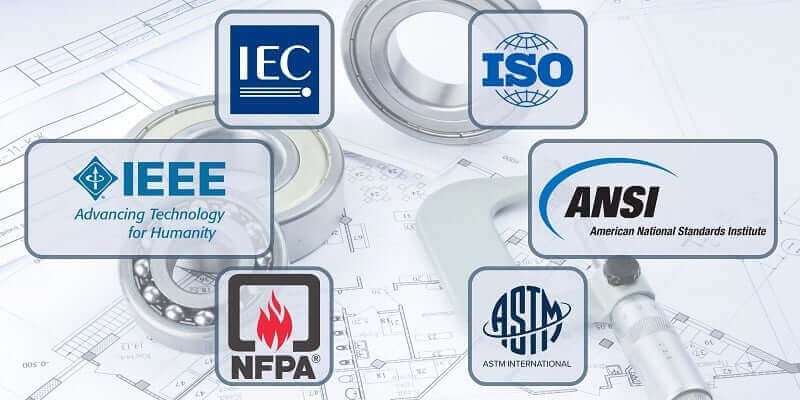

conduit requirements



NEC (National Electrical Code): In the United States, the NEC set regulations for the use of electrical conduits, including PVC, in specific environments and applications.

ASTM (American Society for Testing and Materials): ASTM established guidelines for PVC conduit materials, ensuring they met certain chemical resistance, strength, and performance thresholds.

UL (Underwriters Laboratories): UL standards began certifying PVC conduit products to meet rigorous fire resistance, safety, and reliability standards. UL-listed PVC conduit became essential in ensuring compliance for electrical installations in public, residential, and industrial settings.

AS/NZS 2053 (Australian/New Zealand Standards): AS/NZS 2053 outlines the performance requirements for conduits and fittings used in electrical installations across Australia and New Zealand. These standards ensure PVC conduits meet strict criteria for durability, UV resistance, and mechanical protection, making them suitable for both indoor and outdoor applications in various environmental condition.



3.2 What is PVC Conduit Made Of?



Polyvinyl Chloride (PVC) is a synthetic plastic polymer, and its versatility stems from its ability to be easily modified for different applications. PVC conduit is made by extruding or molding this polymer into a hollow tube or pipe form. The process involves adding specific additives and stabilizers to improve properties like strength, flexibility, and UV resistance, depending on the intended application.



3.2.1 Raw Materials



The primary material is PVC resin, which is combined with stabilizers, impact modifiers, and other additives.

The mix is then subjected to extrusion or molding processes to form the conduit.



3.2.2 Additional Additives



UV inhibitors are often added to make the conduit resistant to degradation from sunlight exposure. Plasticizers may be included in flexible PVC varieties to improve pliability.

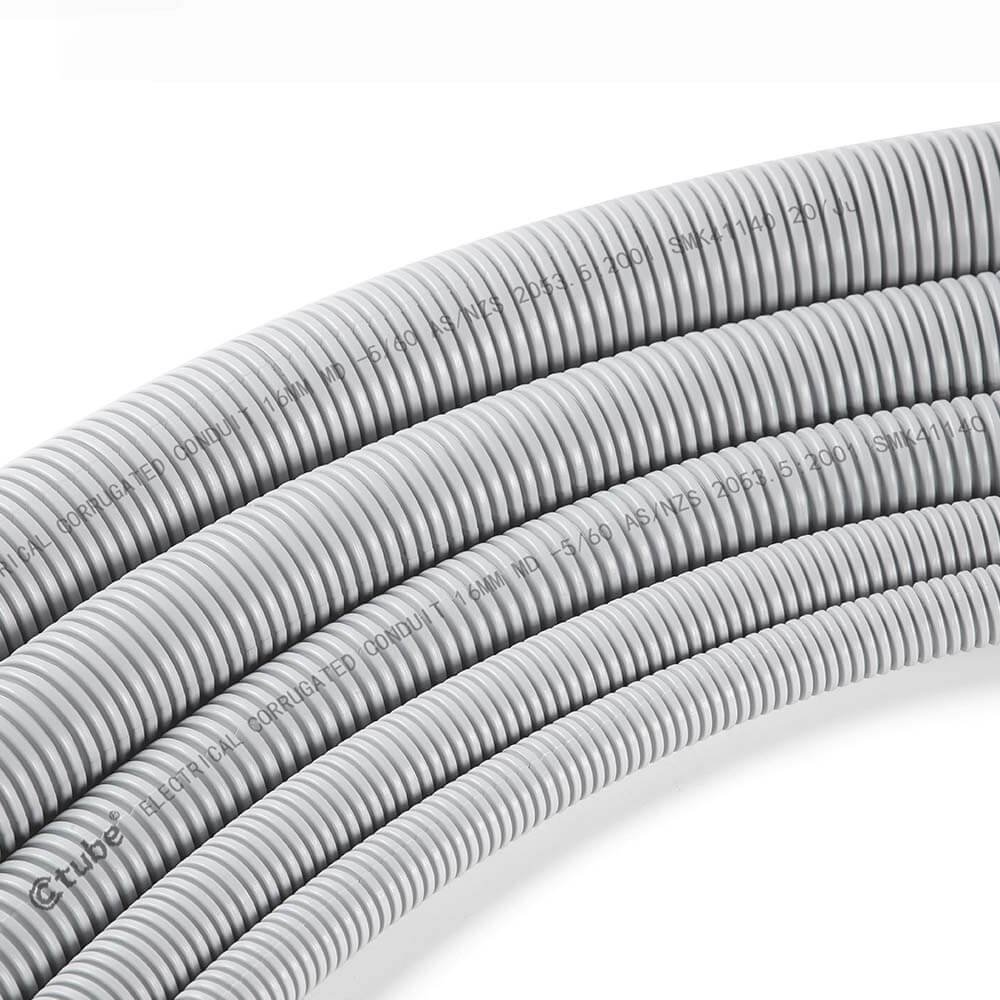

as-nzs-pvc-corrugated conduit pipe grey

3.3 Types of PVC Conduit



Rigid PVC Conduit: Strong, durable, and suitable for outdoor use. It’s used in systems where high mechanical strength and resistance to corrosion are required.

Flexible PVC Conduit: More pliable than rigid versions, ideal for installations requiring bending or movement without compromising the electrical protection.



3.3.1 Technological Advancements and Types of PVC Conduit



Through the late 20th and early 21st centuries, advancements in PVC manufacturing technologies further improved the performance and versatility of PVC conduits:

Flexible PVC Conduit: In the 1980s and 1990s, flexible versions of PVC conduit were developed. These conduits allowed for easier installation in tight spaces and areas that required more bending flexibility, offering a solution for wiring systems that needed to be routed around corners or in more complex pathways.

Solar and Photovoltaic PVC Conduits: With the growing demand for solar energy and green building materials, PVC conduits have evolved to meet the needs of solar power systems. Solar-rated PVC conduits are designed to withstand harsh outdoor conditions, including prolonged exposure to UV radiation and temperature fluctuations. These conduits ensure the protection of solar panel wiring in exposed environments.

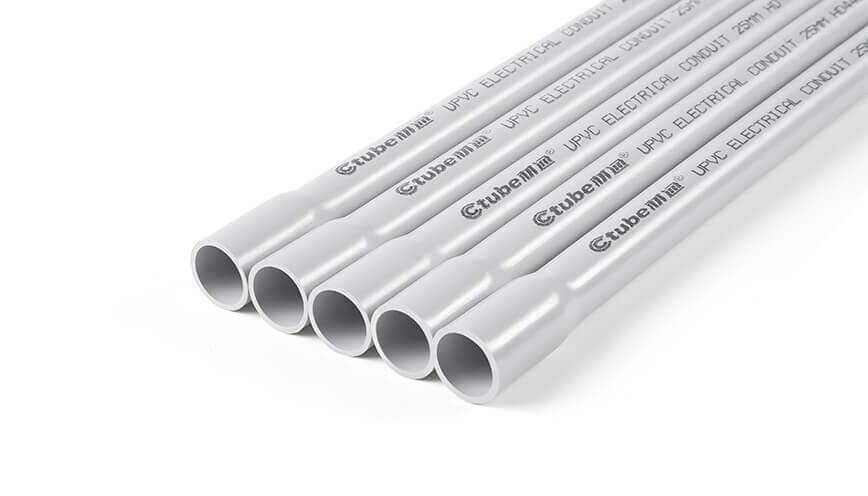

UPVC Solar Conduit Introduction

Unplasticized PVC, or uPVC, is a more rigid form of PVC that was developed for applications that required greater strength and resistance to UV radiation and corrosion. uPVC became a preferred material for outdoor applications, as it could withstand environmental stressors like UV light, moisture, and chemicals. Generally used for solar conduits.



3.4 Key Characteristics of PVC Conduit



PVC conduit is a favored choice due to its excellent mechanical and chemical properties, making it suitable for both indoor and outdoor installations. Here’s a breakdown of the key characteristics that make PVC conduits reliable for electrical wiring applications:

Durability: PVC conduits are highly durable and have a long lifespan, typically lasting several decades when properly installed. They are resistant to cracking, which is crucial for the protection of wiring over time.

Corrosion Resistance: Unlike metal conduits, PVC does not corrode over time. It is impervious to moisture and chemicals, which makes it ideal for use in environments where corrosion could be a concern (e.g., in underground or outdoor applications).

Electrical Insulation: PVC is a non-conductive material, meaning that it prevents electrical shorts and protects against electrical shocks. This characteristic makes PVC conduit the standard choice for wiring protection in homes and buildings.

Lightweight: PVC conduits are much lighter than their metal counterparts (such as steel or aluminum conduits). This makes them easier to handle, cut, and install, which can reduce labor costs during the installation process.

Cost-Effectiveness: One of the key selling points of PVC conduit is its low cost compared to metals or other materials. This affordability makes it an attractive option for both residential and large-scale commercial projects.

Flexibility and Ease of Installation: While rigid PVC conduit offers excellent protection, flexible PVC conduit allows for easier installation in areas where turns or adjustments are needed. It can be bent or twisted without the need for special tools, making it versatile for a range of installation requirements.

Fire Resistance: PVC conduit is fire-resistant, although it is important to note that while it resists ignition, it can burn at high temperatures. In case of fire, PVC conduits can release toxic smoke and gases, which is one of the key drawbacks compared to LSZH (Low Smoke Zero Halogen) materials. Therefore, PVC conduit is best used in environments where fire safety concerns are less critical or can be mitigated.

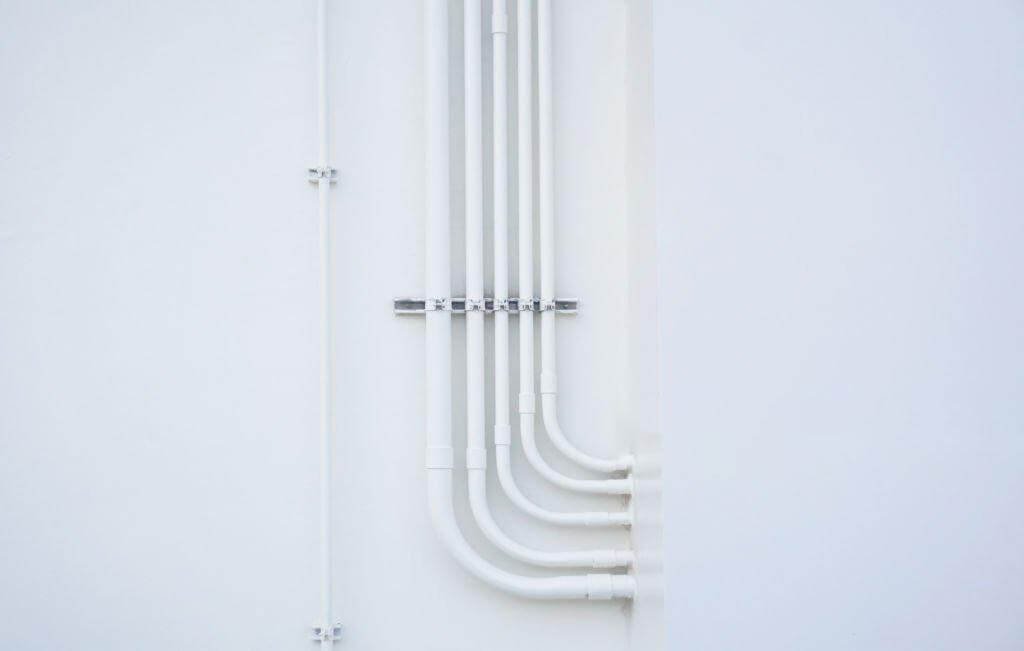

PVC conduit application

3.5 Applications of PVC Conduit



PVC conduits are commonly used in both residential and commercial applications, thanks to their affordability, durability, and ease of installation. They are used to protect electrical wiring and cables in a variety of environments.



3.5.1 Residential Wiring



Indoor: PVC conduit is commonly used to house electrical wiring in walls, ceilings, and floors of homes. Its fire-resistant properties and protective casing ensure that wires are safe from damage due to impacts, chemicals, and moisture.

Outdoor: In residential applications, PVC conduit is used for outdoor lighting, pool pumps, or garden lighting. It’s especially useful in areas with high moisture content.

Commercial Buildings: In commercial settings, PVC conduit protects wiring that runs through walls, ceilings, and floors. It’s used in office buildings, retail outlets, and hospitals to keep electrical systems safe from damage and prevent the spread of fire.

Control Panel Wiring: PVC conduits are often used to route cables to and from electrical control panels in commercial spaces. The non-corrosive properties make it ideal for protecting wiring that could be exposed to harsh environments.



3.5.2 Industrial Applications:



Manufacturing Plants: PVC conduit is used in factories and plants where electrical wiring needs to be protected from moisture, oils, and dust. It’s also ideal in environments where flexibility and resistance to corrosion are essential.

Data Centers: PVC conduit is often used to protect the data transmission cables in data centers, where multiple cables need to be run through tight spaces without disrupting airflow or adding unnecessary weight.



3.5.3 Underground Installations



Burying electrical wires underground or in conduits that run through tunnels or deep trenches is a typical application for rigid PVC. The material’s ability to resist moisture, chemical exposure, and corrosion makes it ideal for underground installations.

Infrastructure Projects: PVC conduits are used in laying electrical cables for roadways, railways, and other infrastructure projects, protecting them from environmental factors like moisture or physical damage.

LSZH Conduit vs PVC Conduit Project

4. Comparing Key Features: LSZH vs PVC Conduit



When choosing the right conduit material for an electrical installation, it’s important to weigh the various factors that could impact safety, durability, environmental footprint, cost, and performance. Below is a detailed comparison between LSZH (Low Smoke Zero Halogen) and PVC (Polyvinyl Chloride) conduits based on key features that are crucial for both residential and industrial applications.

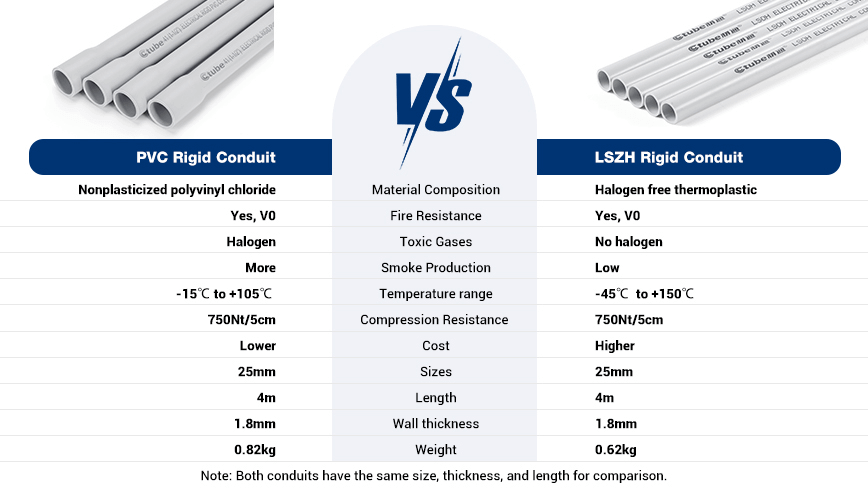

LSZH conduit VS PVC CONDUIT

In order to let you better visualize the difference between the two parameters, we choose Ctube PVC conduit and LSZH conduit, which have the same specifications except for different materials, for comparison.



4.1 Material Composition



PVC (Polyvinyl Chloride) conduits are made from a nonplasticized form of polyvinyl chloride, a versatile and widely used material in the electrical and construction industries. This material contains chlorine-based compounds, which contribute to its durability, rigidity, and resistance to environmental factors like moisture and UV exposure. On the other hand, LSZH (Low Smoke Zero Halogen) conduits are manufactured from halogen-free thermoplastics, designed specifically to minimize harmful emissions during a fire. The absence of halogens in LSZH materials significantly reduces the release of toxic gases and corrosive substances, making them safer in enclosed spaces or high-risk environments.



4.2 Fire Resistance and Toxic Gas Emissions



Both PVC and LSZH conduits offer fire resistance rated at V0, meaning they are self-extinguishing when exposed to flames. However, their behavior during combustion differs greatly. PVC conduits, due to their chlorine content, can produce significant amounts of dense smoke and toxic gases, posing risks to human health and sensitive electronic equipment in the event of a fire. In contrast, LSZH conduits emit minimal smoke and no halogen-based toxic gases, ensuring safer evacuation and reduced damage to infrastructure. These features make LSZH conduits a preferred choice in industries like transportation, healthcare, and data centers, where fire safety is paramount.

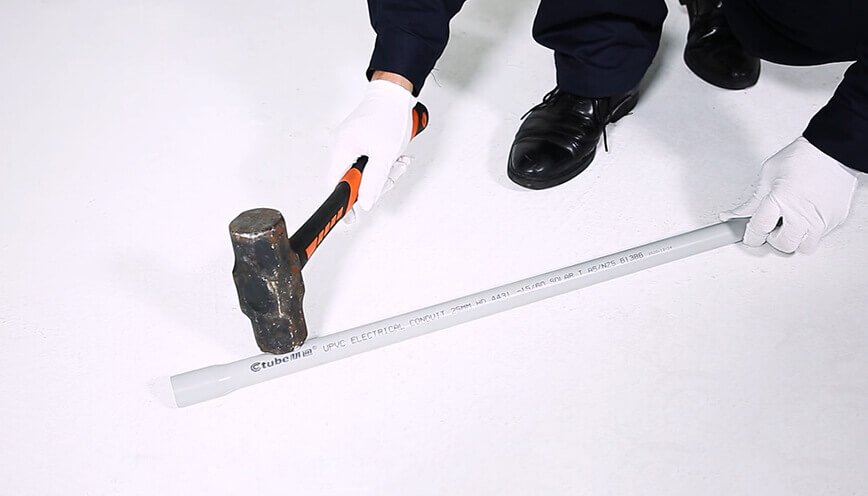

Conduit Durability and Rigidity

4.3 Temperature Range and Durability



When it comes to operating temperatures, LSZH conduits outperform PVC by a considerable margin. LSZH conduits have a temperature range of -45°C to +150°C, making them highly suitable for extreme environments, including areas with significant temperature fluctuations. PVC conduits, with a range of -15°C to +105°C, are less versatile in extreme conditions but are sufficient for most standard installations. Both conduits offer equal compression resistance of 750N/5cm, indicating their mechanical robustness and ability to withstand external pressure.

Conduit Fire Safety

4.4 Environmental Impact



From an environmental standpoint, LSZH conduits offer clear advantages over PVC. The halogen-free composition of LSZH materials ensures minimal release of harmful substances during disposal or accidental fire incidents. PVC conduits can pose challenges during disposal due to its chlorine content, which may lead to environmental pollution if not handled properly.

conduit cost consideration

4.5 Cost and Weight



Cost is a distinguishing factor between the two types of conduits. PVC conduits are generally more affordable, making them the go-to option for cost-sensitive projects. LSZH conduits, while more expensive upfront, offer long-term value in environments where safety and reduced environmental impact are critical. Additionally, LSZH conduits are lighter, weighing 0.62kg compared to PVC’s 0.82kg for the same dimensions. This difference in weight can simplify installation and reduce transportation costs for large-scale projects.



It is important to note that product specifications, such as material composition, fire resistance, temperature range, and other technical parameters, may vary slightly among different suppliers. Datas above from conduit produced by Ctube. These variations can stem from differences in manufacturing processes, material formulations, or regional compliance standards. Therefore, while this comparison provides a general understanding of the distinctions between PVC and LSZH conduits, it is advisable to confirm the exact specifications and performance data with your chosen supplier before making a purchase. This ensures that the product meets your specific project requirements and aligns with applicable safety and environmental regulations.



5. Conclusion



In comparing PVC and LSZH conduits, each option offers distinct advantages and characteristics tailored to different applications.

When deciding which conduit to choose, project-specific needs should be the guiding factor. For standard residential or commercial installations where budget constraints are critical, PVC conduits provide a reliable and economical solution. However, for projects where safety, environmental considerations, and compliance with stringent regulations are essential, LSZH conduits offer superior performance despite their higher initial cost.

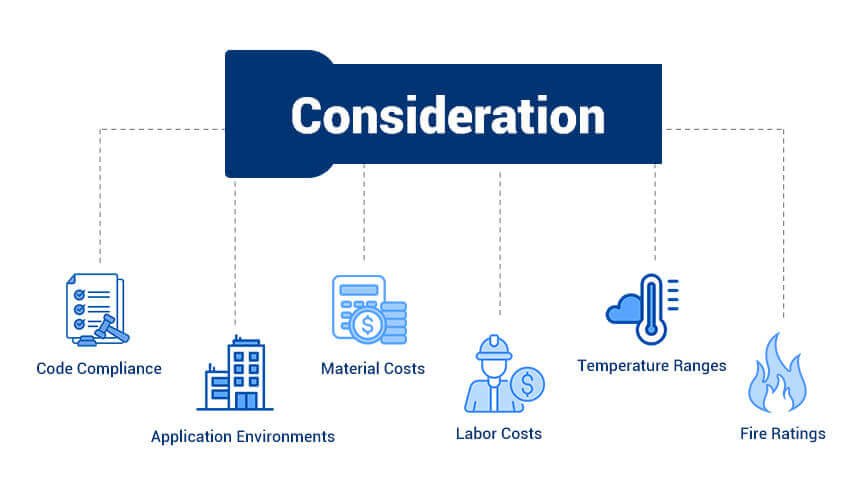

conduit choosing

Ultimately, the choice between PVC and LSZH conduits should not only focus on immediate costs but also consider long-term performance, safety, and environmental impact. Ensuring that the conduit material aligns with the project’s requirements will lead to a safer, more efficient, and sustainable electrical installation. By carefully evaluating these factors and consulting with your supplier for precise product details, you can make an informed decision that delivers lasting benefits.

FAQs



1. Are there specific tools needed to install LSZH and PVC conduits?

The tools required for installing both LSZH and PVC conduits are similar, including pipe cutters, solvent cement, and fittings. However, always check the manufacturer’s guidelines for specific installation recommendations.

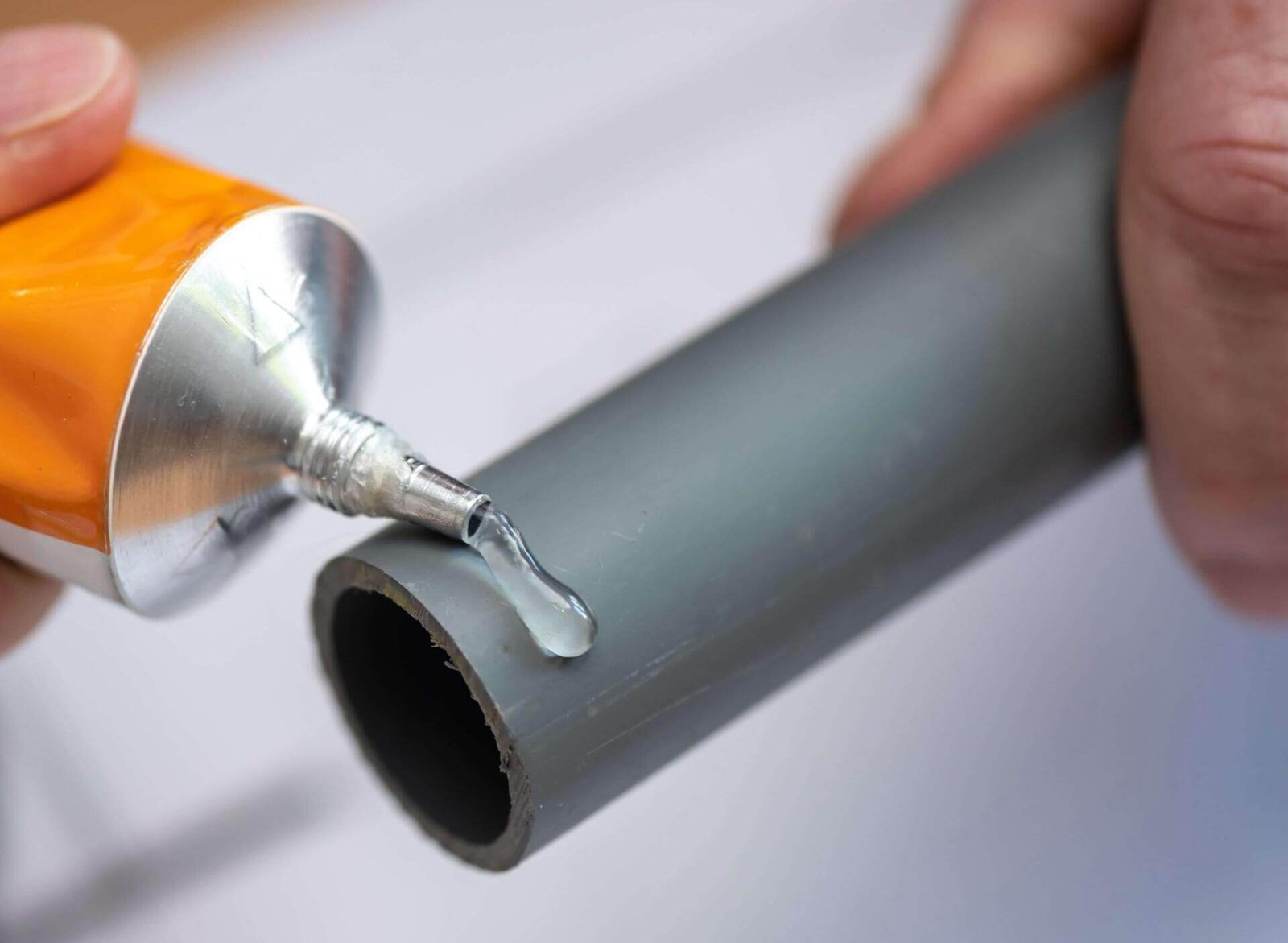

conduit installation



2. Is LSZH conduit have matching fittings like PVC conduit?

Both LSZH and PVC systems include matching fittings, such as couplings, elbows, and junction boxes, designed specifically to complement their respective material properties. It’s crucial to ensure that the fittings used are compatible with the type of conduit for safe and effective installation.

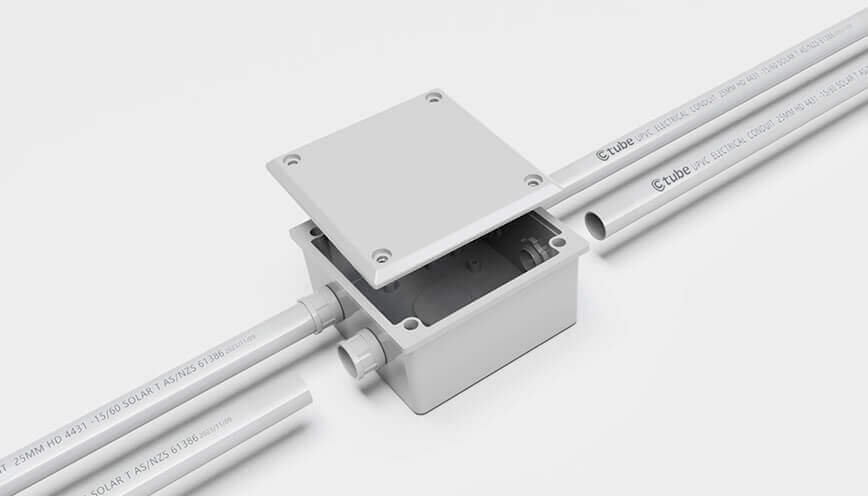

Ctube Solar Conduit and Fittings Ease of Installation



3. What are the types of conduits available in LSZH and PVC materials?

PVC conduit and LSZH conduits include rigid, flexible (corrugated) types, each type serves unique purposes based on safety, flexibility, and environmental requirements.

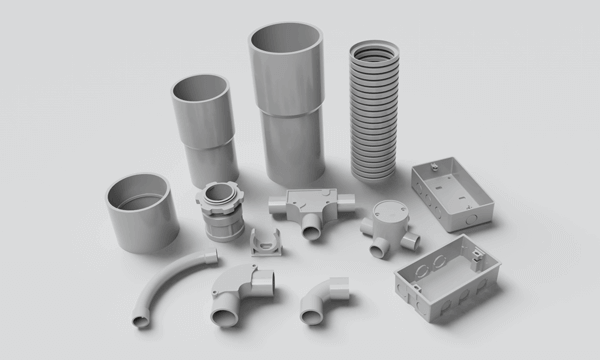

ctube conduit and fittings
